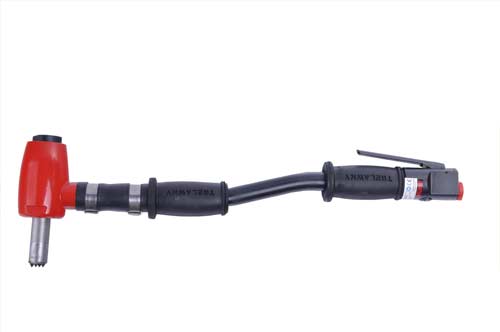

The SH1 and VL SH1 single-head scabblers are the ideal tools for roughing and preparing concrete in small areas such as concrete joints. The VLSH1 low vibration model helps reduce the risk to operators of vibration-related injuries. The optional TVS® vacuum shroud allows the connection of an industrial dust collector for collecting nuisance and hazardous dust for the protection of operators and the environment.
The SH1 and VL SH1 single-head scabblers are the ideal tools for roughing and preparing concrete in small areas such as concrete joints. The VLSH1 low vibration model helps reduce the risk to operators of vibration-related injuries. The optional TVS® vacuum shroud allows the connection of an industrial dust collector for collecting nuisance and hazardous dust for the protection of operators and the environment.
– Pistol grip and in-line configurations suit all applications
– ATEX certified for use without hot work permits
– Ultra low vibration (<2.8 m/s2) protects operators
– Needle and chisel models for effective cleaning and
heavy chipping
– Low air consumption keeps operating requirements low
– Simple maintenance with no special tools required keeps
downtime low
– TVS kits available with dust control and drop protection for
added safety
| Model | Part Number | Weight (kg) | Length (mm) | Working Height (mm) | Blows Per Minute(BPM) | Air Consumption (lps – cfm) |
Noise Level ( db (A) ) |
Vibration Level(Aeq m/s²) |
| Low Vibration Single Scabbler Bush Hammer Head | 196.5105 | 2.5 | 515 | 160 | 2900 | 4.25 – 9 | 91 | 4.50 |
| Low Vibration Single Scabbler Cruciform Head | 196.5100 | 2.5 | 515 | 160 | 2900 | 4.25 – 9 | 91 | 4.50 |

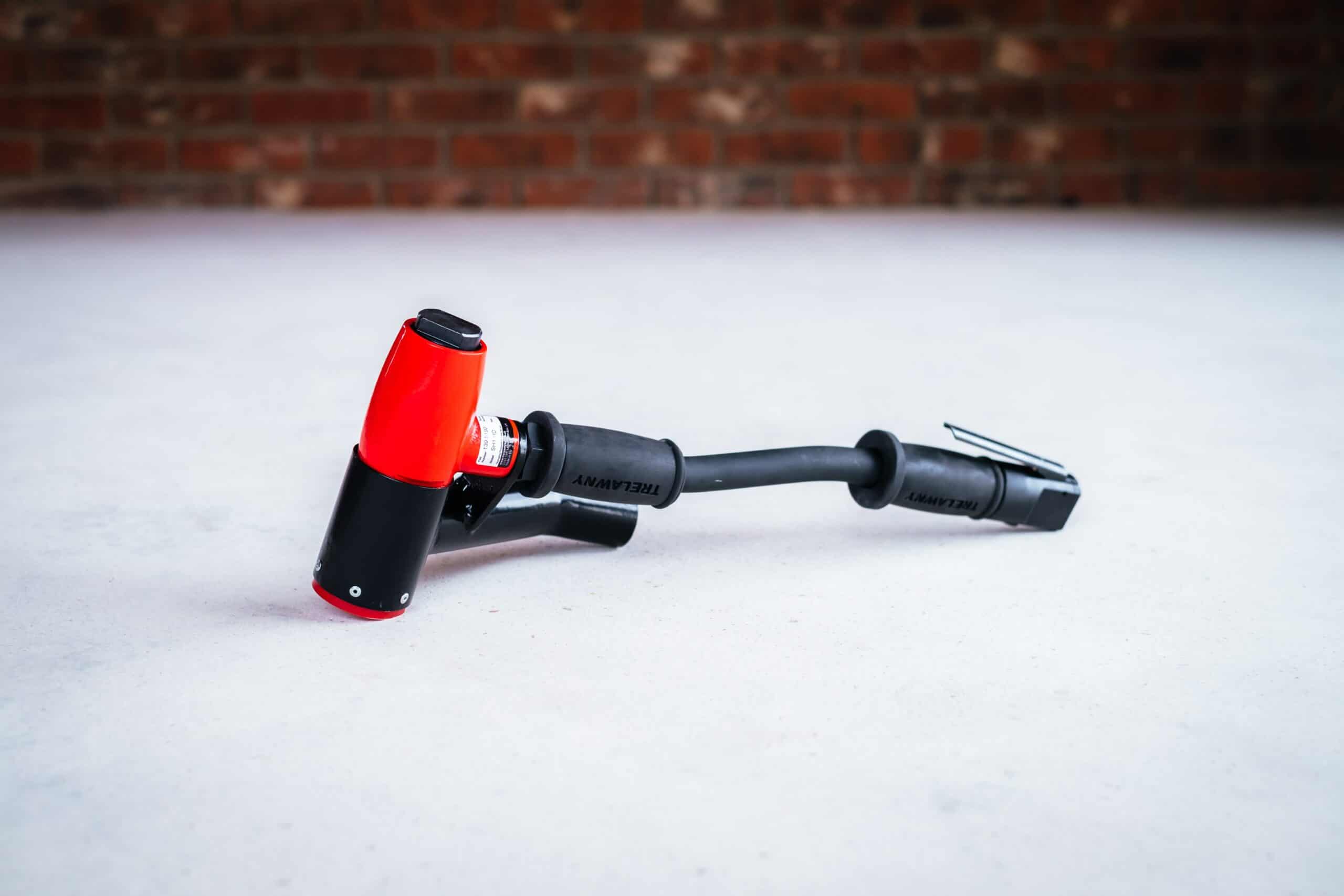

| Single Scabbler Cruciform Head fitted with shroud | 139.5192 | 2.7 | 485 | 160 | 2400 | 3.7 – 8 | 94 | 6.96 |

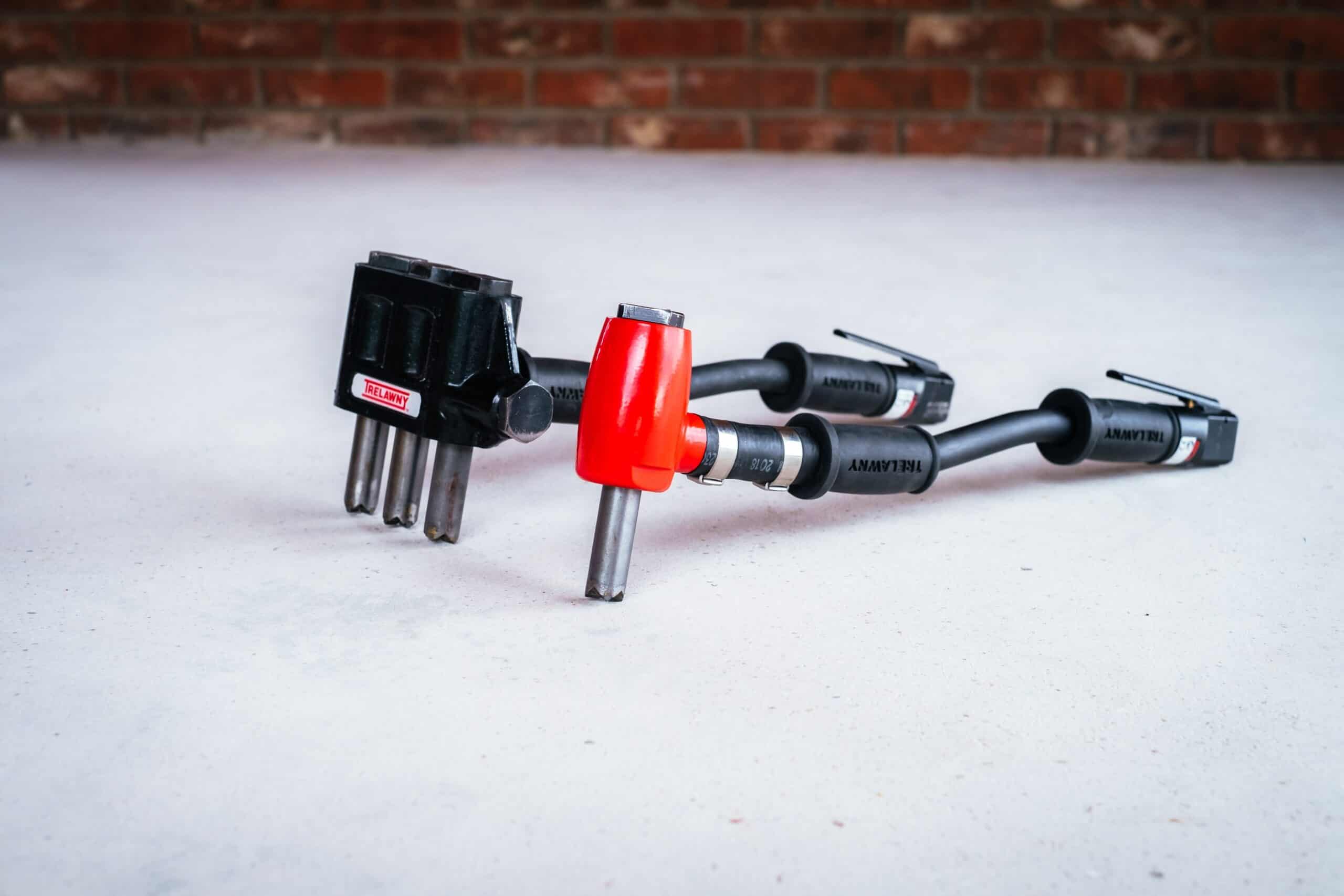

| Triple Scabbler Side Handle Bush Hammer Head | 153.5250 | 5.2 | 450 | 160 | 2400 x 3 | 7-15 | 98 | 8.70 |
| Triple Scabbler Side Handle Cruciform Head | 153.5200 | 5.2 | 450 | 160 | 2401 x 3 | 7-15 | 98 | 8.70 |
| Triple Scabbler with Shroud Cruciform Head Short Handle | 139.5390 | 5.2 | 380 | 160 | 2402 x 3 | 7-15 | 98 | 8.70 |
| Triple Scabbler with Shroud Cruciform Head | 139.5392 | 5.2 | 450 | 160 | 2403 x 3 | 7-15 | 98 | 8.70 |
