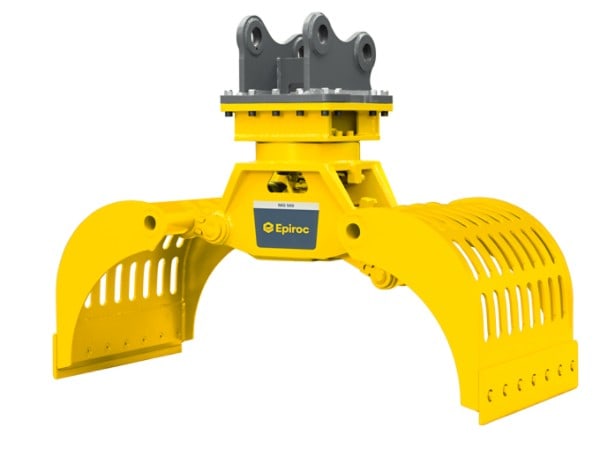

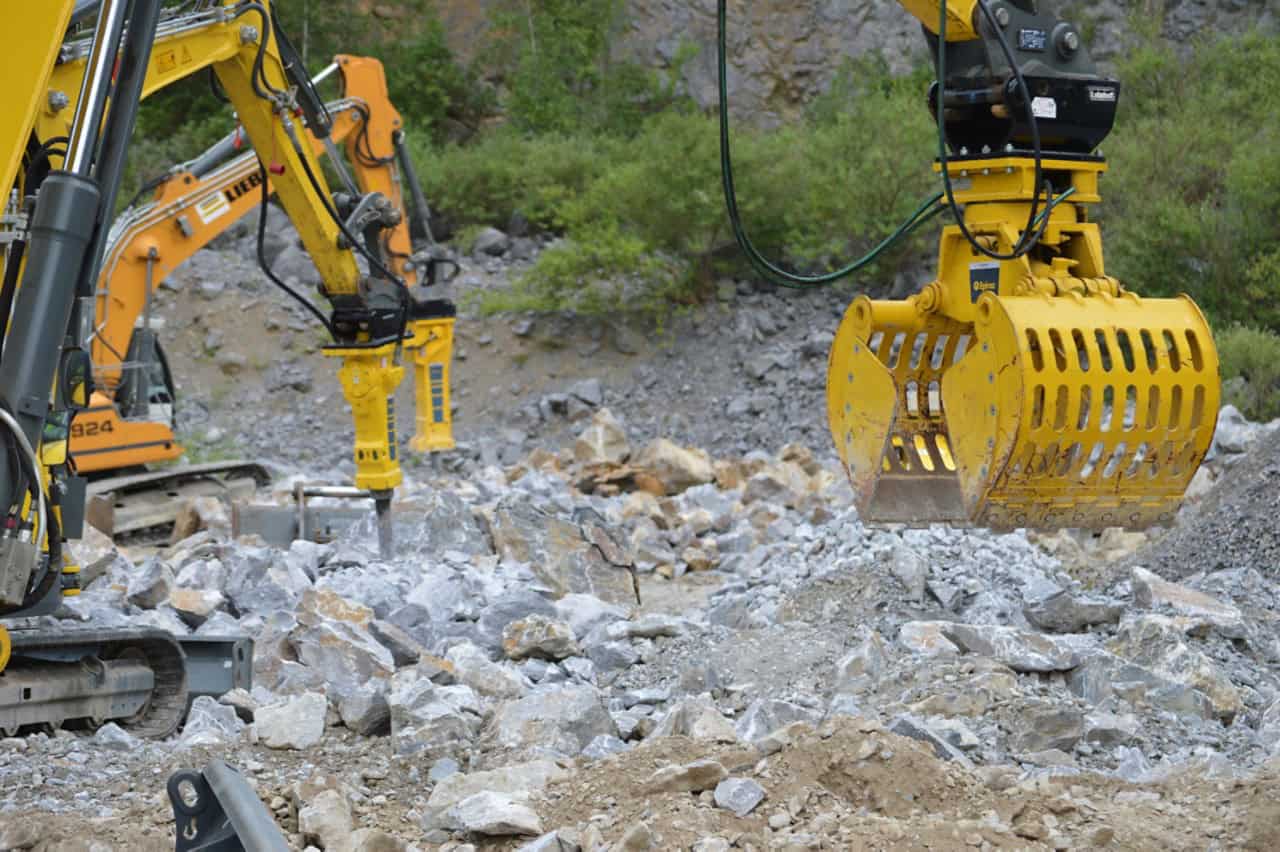

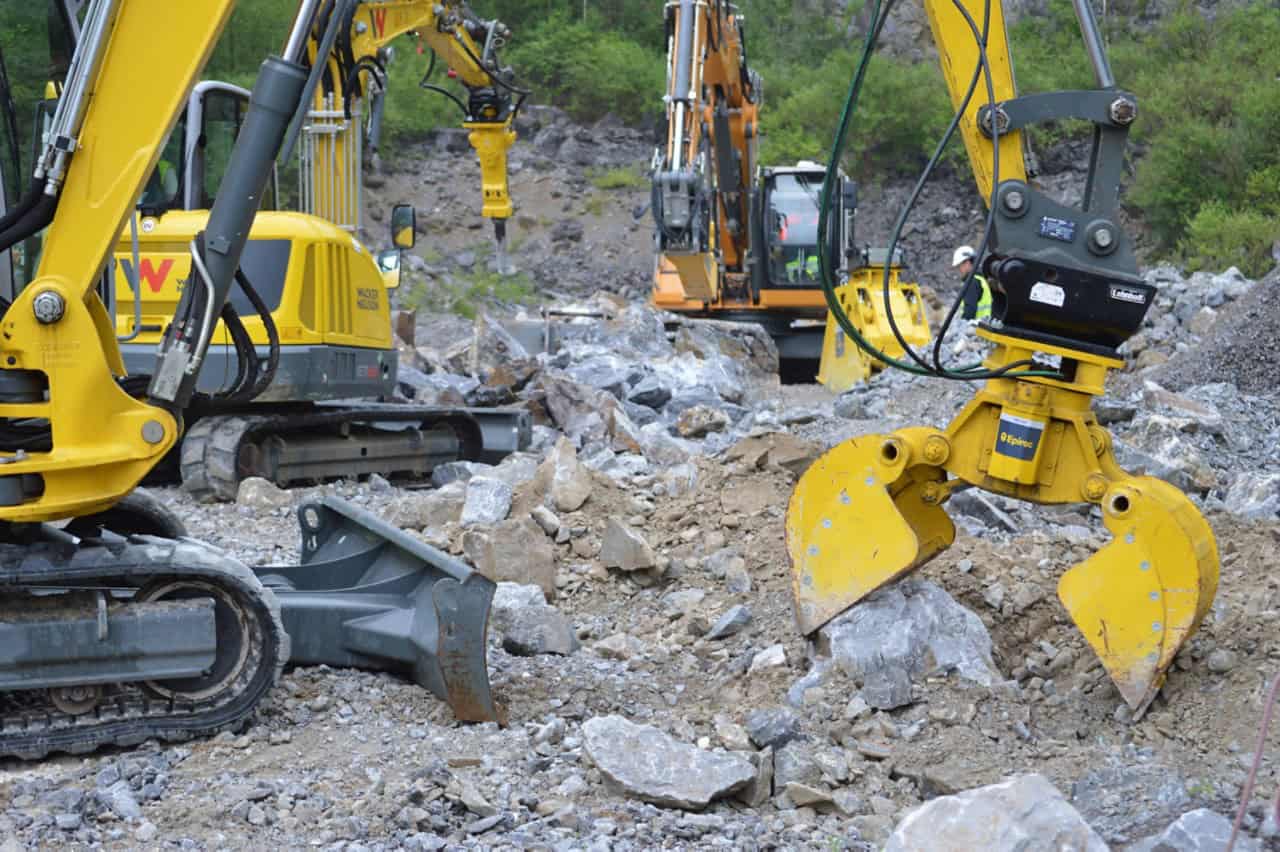

Excavator grapple for carriers of 5 – 9 tons (11,023-19,841 lb), used in sorting and loading applications
Excavator grapple for carriers of 5 – 9 tons (11,023-19,841 lb), used in sorting and loading applications
| Carrier weight class ¹ | 5 t – 9 t |
| Service weight (rotation) ² | 495 kg |
| Service weight (non rotation) ² | 465 kg |
| Product weight (rotation) | 430 kg |
| Product weight (non rotation) | 400 kg |
| Jaw opening, max | 1 585 mm |
| Grapple width | 705 mm |
| Max. closing force | 2,4 t |
| Loading volumen | 0,25 m³ |
| Oil flow, open / close (range) | 35 l/min – 50 l/min |
| Operating pressure | 300 bar |
| Oil flow, rotation | 10 l/min – 15 l/min |
| Max operating pressure, rotation | 170 bar |
A: 892mm
B: 1,585mm
C: 705mm
D: 755mm
F1: 2.4t
