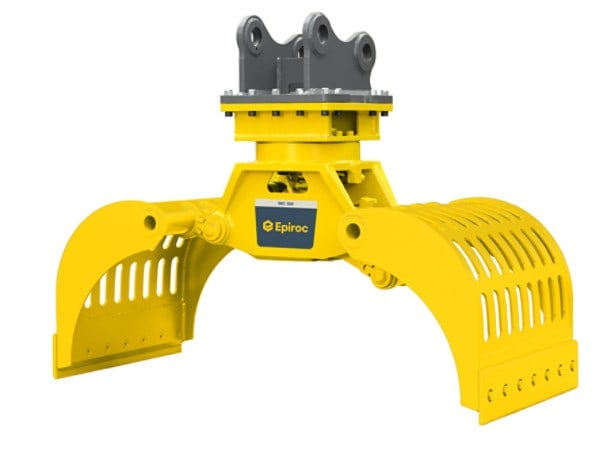

Excavator grapple for carriers of 2 – 5 tons (4,409-11,023 lb), used in sorting and loading applications
Excavator grapple for carriers of 2 – 5 tons (4,409-11,023 lb), used in sorting and loading applications
| Carrier weight class ¹ | 2 t – 5 t |
| Service weight (rotation) ² | 295 kg |
| Product weight (rotation) | 270 kg |
| Jaw opening, max | 1 157 mm |
| Grapple width | 500 mm |
| Max. closing force | 2 t |
| Loading volumen | 0,11 m³ |
| Oil flow, open / close | 35 l/min |
| Operating pressure | 300 bar |
| Oil flow, rotation | 5 l/min – 10 l/min |
| Max operating pressure, rotation | 170 bar |
A: 750mm
B: 1,157mm
C: 500mm
D: –
F1: 2.0t
