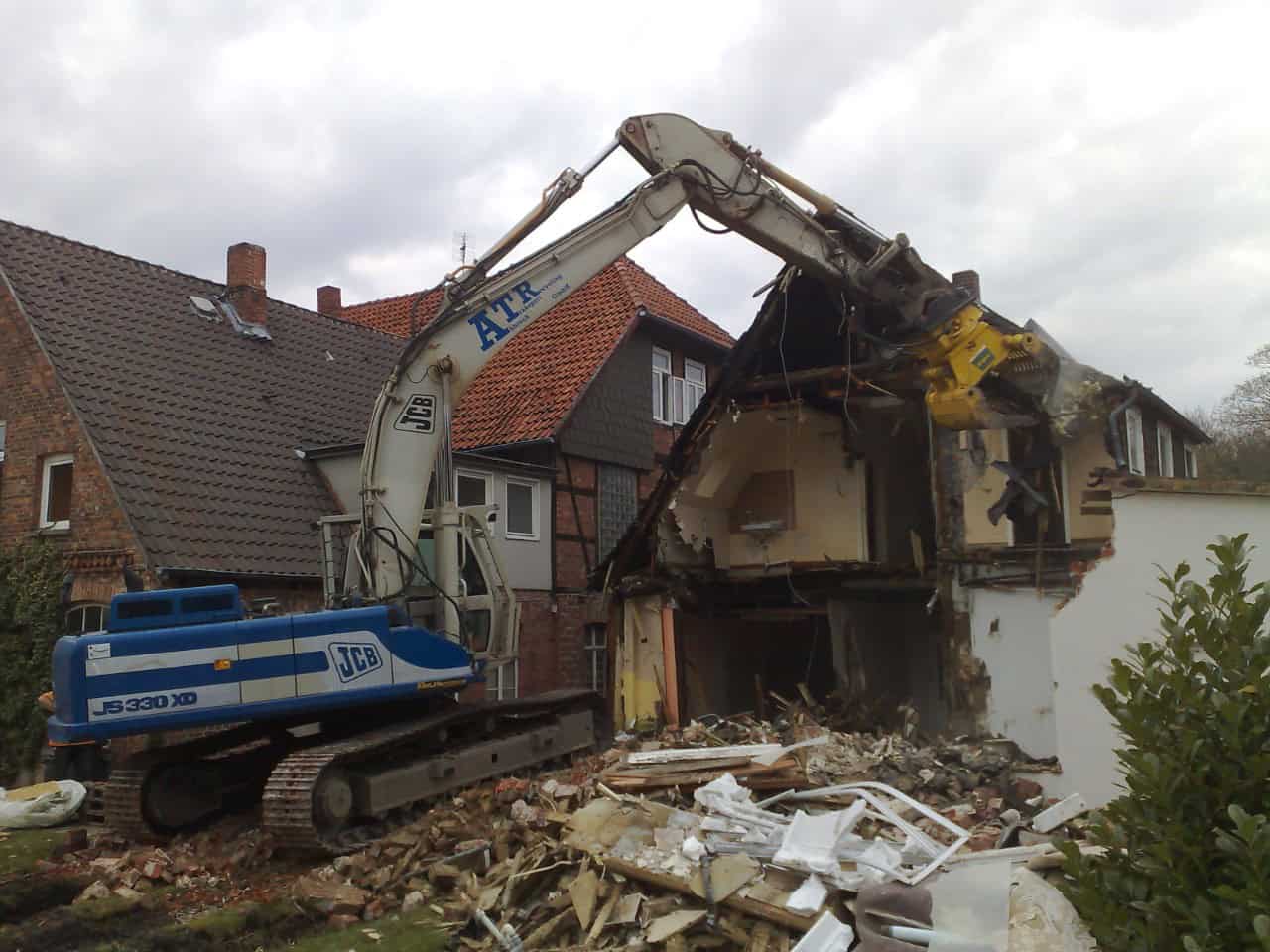

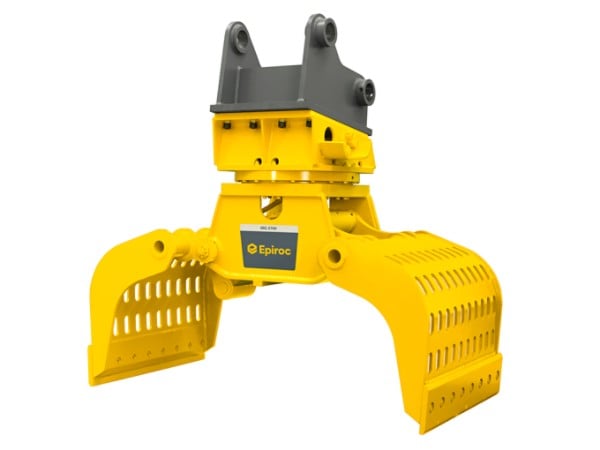

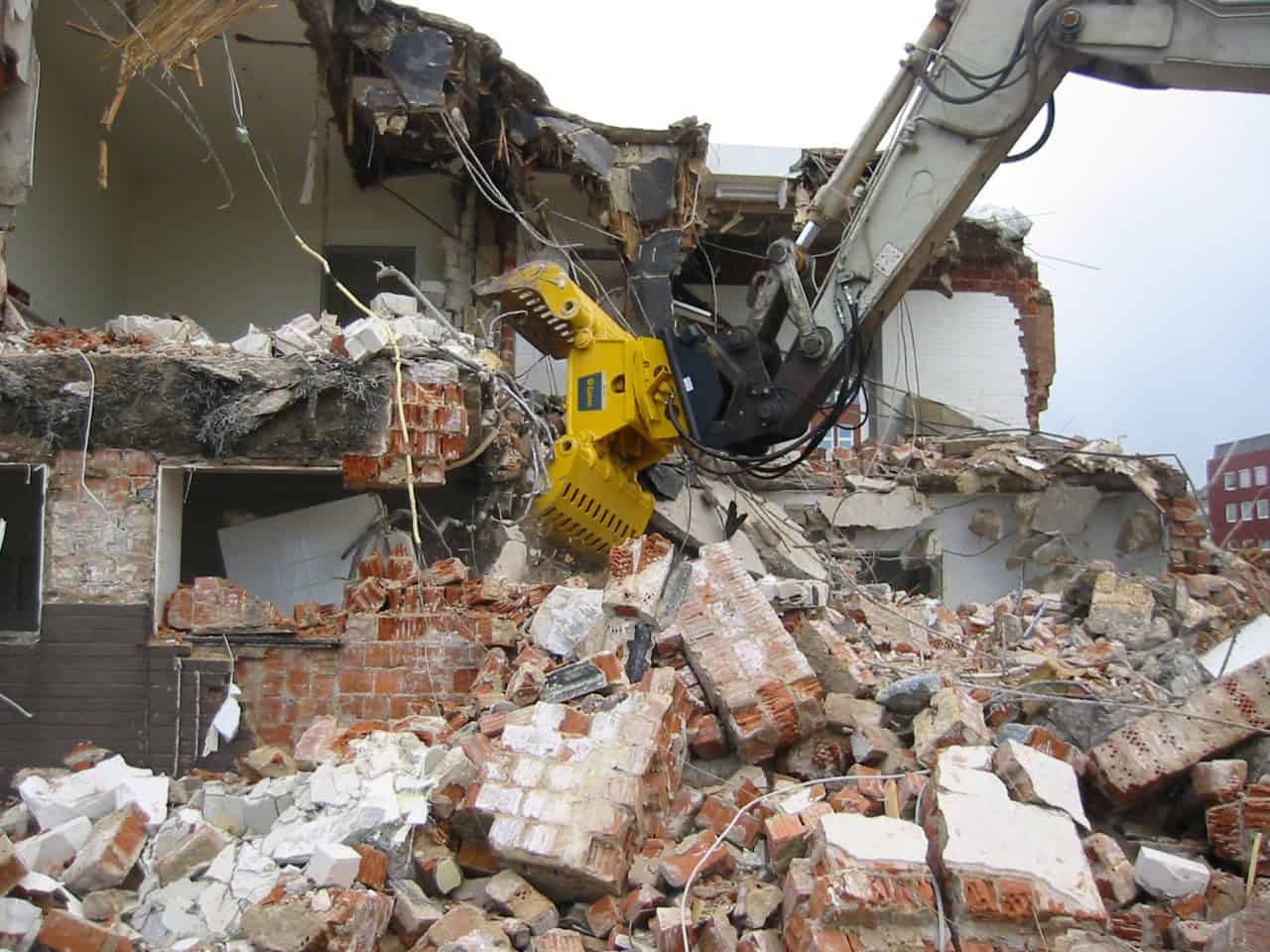

Excavator grapple for carriers of 28 – 50 tons (61,729-110,230 lb), used in sorting and loading applications
Excavator grapple for carriers of 28 – 50 tons (61,729-110,230 lb), used in sorting and loading applications
| Carrier weight class ¹ | 28 t – 50 t |
| Service weight (rotation) ² | 2 850 kg |
| Product weight (rotation) | 2 594 kg |
| Jaw opening, max | 2 246 mm |
| Grapple width | 1 220 mm |
| Max. closing force | 9 t |
| Loading volumen | 0,92 m³ |
| Oil flow, open / close (range) | 180 l/min – 200 l/min |
| Operating pressure | 350 bar |
| Oil flow, rotation | 30 l/min – 35 l/min |
| Max operating pressure, rotation | 170 bar |
A: 1,651mm
B: 2,246mm
C: 1,220mm
D: –
F1: 9.0t
