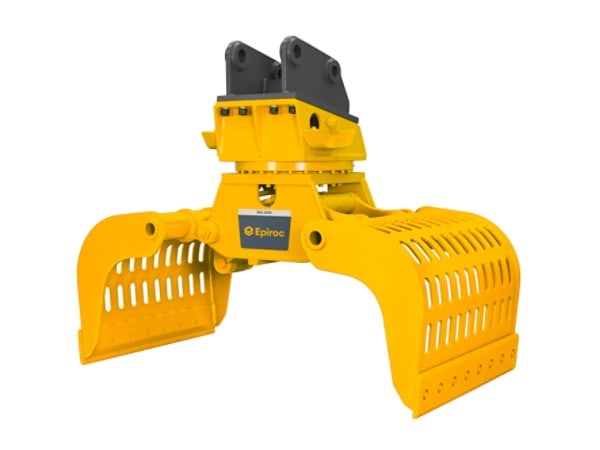

Excavator grapple for carriers of 25 – 38 tons (55,115-83,775 lb), used in sorting and loading applications
Excavator grapple for carriers of 25 – 38 tons (55,115-83,775 lb), used in sorting and loading applications
| Carrier weight class ¹ | 25 t – 38 t |
| Service weight (rotation) ² | 2 310 kg |
| Product weight (rotation) | 2 050 kg |
| Jaw opening, max | 2 255 mm |
| Grapple width | 1 210 mm |
| Max. closing force | 8 t |
| Loading volumen | 0,88 m³ |
| Oil flow, open / close (range) | 160 l/min – 180 l/min |
| Operating pressure | 350 bar |
| Oil flow, rotation | 30 l/min – 35 l/min |
| Max operating pressure, rotation | 170 bar |
A: 1,448mm
B: 2,255mm
C: 1,210mm
D: –
F1: 8.0t
