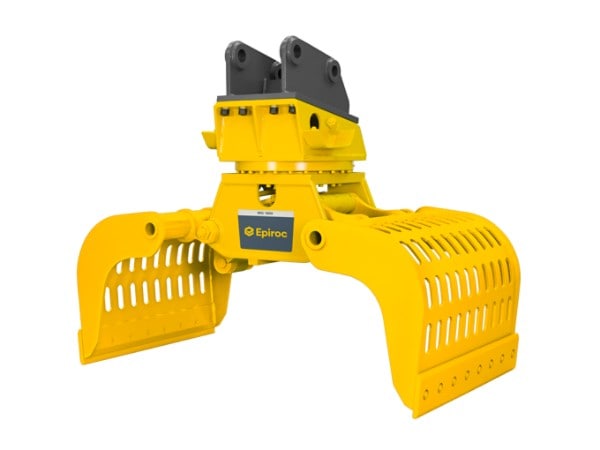

Excavator grapple for carriers of 20 – 28 tons (44,092-61,729 lb), used in sorting and loading applications
Excavator grapple for carriers of 20 – 28 tons (44,092-61,729 lb), used in sorting and loading applications
| Carrier weight class ¹ | 20 t – 28 t |
| Service weight (rotation) ² | 1 830 kg |
| Product weight (rotation) | 1 634 kg |
| Jaw opening, max | 2 014 mm |
| Grapple width | 1 210 mm |
| Max. closing force | 6,8 t |
| Loading volumen | 0,86 m³ |
| Oil flow, open / close (range) | 150 l/min – 170 l/min |
| Operating pressure | 350 bar |
| Oil flow, rotation | 30 l/min – 35 l/min |
| Max operating pressure, rotation | 170 bar |
A: 1,478mm
B: 2,014mm
C: 1,030mm
D: –
F1: 6.8t
