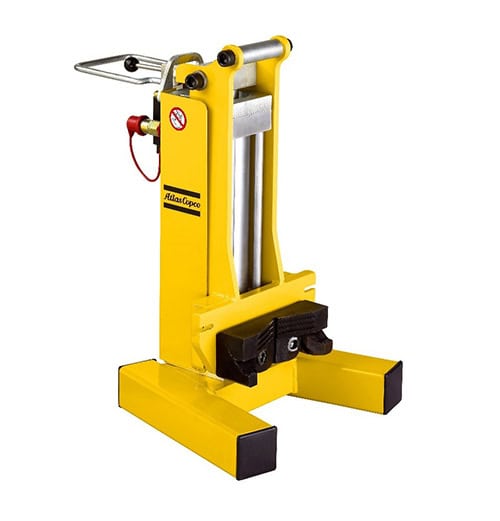

The post puller is used by road-maintenance contractors to repair barriers. With hardened jaws and automatic chain tightening clamp, the Atlas Copco post puller is ideal for removing all kinds of wooden or steel posts including IPE, HPE, and UPE profiles, plus round/square steel tubes. Pulling force up to 6 tonnes with an optional hand lever giving a total pulling force of up to 10 tonnes. For removal of any pole, steel beam (round and square) or tube with diameters up to 200mm (8 in).
The post puller is used by road-maintenance contractors to repair barriers. With hardened jaws and automatic chain tightening clamp, the Atlas Copco post puller is ideal for removing all kinds of wooden or steel posts including IPE, HPE, and UPE profiles, plus round/square steel tubes. Pulling force up to 6 tonnes with an optional hand lever giving a total pulling force of up to 10 tonnes. For removal of any pole, steel beam (round and square) or tube with diameters up to 200mm (8 in).
| Model | LPP 10 HD | |
|---|---|---|
| Service weight | kg (lb) | 60 (132) |
| Oil flow | l/min (gpm) | 20-40 (5.28-10.57) |
| Working pressure | bar (psi) | 100-160 (1,450-2,321) |
| Max back pressure | bar (psi) | 30 (435) |
| Lift capacity per stroke | mm (in) | 12-200 (0.4-7.8) |
| Pulling force | kg (lb) | 6.000 (13,228) |
| Full pulling force | kg (lb) | 10.000 (22,046) |
| EHTMA class | C/D/E | |
| Part number | 1801 8100 03 |
