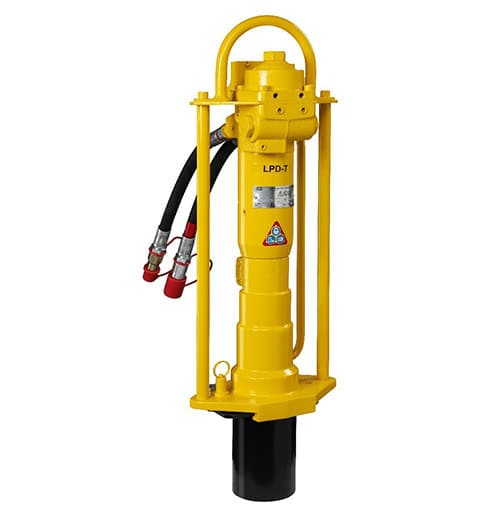

Used for driving in road barrier tubes, profiles, signposts, fences and a wide range of anchors and poles. The post drivers provide stable, powerful, high speed driving for a variety of post sizes ranging from 40-100mm diameter poles. When operated with an optional hose-mounted remote-controlled valve, the drivers can be run with both open- or closed-center systems.
Used for driving in road barrier tubes, profiles, signposts, fences and a wide range of anchors and poles. The post drivers provide stable, powerful, high speed driving for a variety of post sizes ranging from 40-100mm diameter poles. When operated with an optional hose-mounted remote-controlled valve, the drivers can be run with both open- or closed-center systems.
Activation type: By trigger lever
Hydraulic system: Open centre
Weight incl. hoses: 32kg
Service weight (with square adaptor, 54 mm): 34kg
Oil flow: 20-30 l/min
Working pressure: 105-140 bar
Impact rate at 30 l/min: 1680 blows/min
Hydraulic ports: ½” BSP
Vibration level 3 axes (ISO 28927-10)*, 20 lpm: 12.8 m/s²
Sound power level guaranteed, Lw (2000/14/EC)*: 115 dB(A)
Sound pressure level (ISO 11203)* Lp, r=1m: 102 dB(A)
EHTMA class: C/D
Part number: 1801 4040 02
