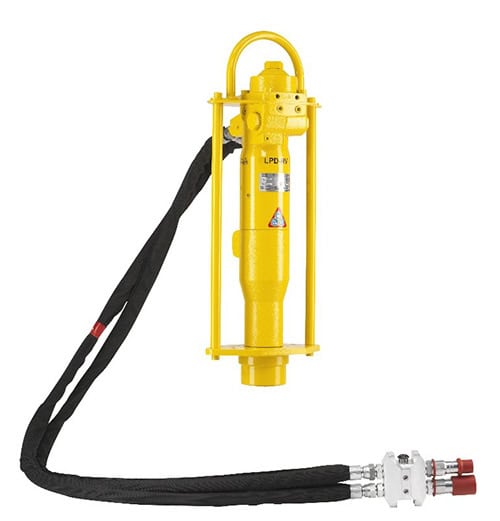

Used for driving in road barrier tubes, profiles, signposts, fences and a wide range of anchors and poles. The post drivers provide stable, powerful, high speed driving for a variety of post sizes ranging up to 70-150mm diameter poles. When operated with an optional hose-mounted remote-controlled valve, the drivers can be run with both open- or closed-center systems.
Used for driving in road barrier tubes, profiles, signposts, fences and a wide range of anchors and poles. The post drivers provide stable, powerful, high speed driving for a variety of post sizes ranging up to 70-150mm diameter poles. When operated with an optional hose-mounted remote-controlled valve, the drivers can be run with both open- or closed-center systems.
| Model | LPD-HD-RV | ||||
|---|---|---|---|---|---|
| Activation type | By | remote valve | |||
| Hydraulic system | Open or closed centre | ||||
| Service weight | kg | 46 *3 | |||
| Oil flow | l/min | 28-40 | |||
| Working pressure | bar | 105-125 | |||
| Impact rage | bpm | 1,320 (30 l/min) | |||
| Post/rod diameters | mm | 70-150 | |||
| Vibration level 3 axes (ISO 28927-10) 20lpm *4 | m/s² | ||||
| Sound power level guaranteed (2000/14/EC) *4 | Lw dB(A) | 118 | |||
| Sound pressure level (ISO 11203) *4 | Lp, r=1m dB(A) | 105 | |||
| EHTMA class | D/E | ||||
| *1 Service weight will depend on size of adaptor. For further information, consult operating manuals *2 With square adaptor, 54 mm *3 With anvil rod and head, 148 mm *4 Important: full details of measurement is available in the Safety and Operating Instruction of the product. | |||||
