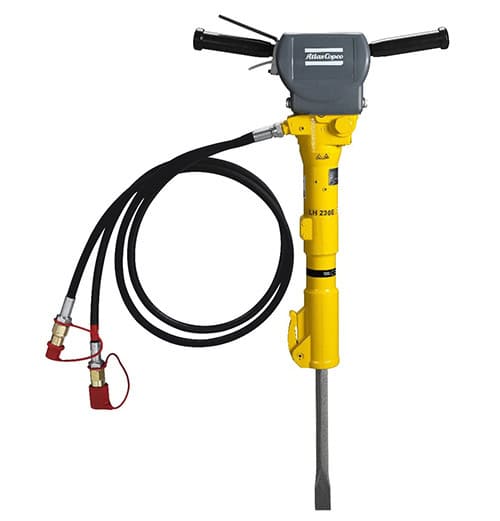

This medium weight, multipurpose breaker is among the best general purpose breakers available in the 22-28 kg (48-62 lb) range. It is commonly used with 5″ asphalt chisels for road building maintenance applications, but also work well in brickwork, frozen soil and concrete.
This medium weight, multipurpose breaker is among the best general purpose breakers available in the 22-28 kg (48-62 lb) range. It is commonly used with 5″ asphalt chisels for road building maintenance applications, but also work well in brickwork, frozen soil and concrete.
| Breaker type | Vibro-reduced |
| Weight, incl. hoses | 32.5 kg |
| Length | 765 mm |
| Oil flow | 20 l/min – 30 l/min |
| Working pressure | 110 bar – 125 bar |
| Back Pressure, max | 15 bar |
| Impact rate | 1,350 blows/min – 1,750 blows/min |
| Vibration level 3 axes (ISO 28927-10) | 4.6 m/s² |
| Sound power level guaranteed (2000/14/EC) | 107 dB(A) |
| Sound pressure level (ISO 11203) | 94 Lp. dB(A) |
| EHTMA class | C/D |
| Shank size: Hex | 28×152 mm – 1 1⁄8 x 6 inch ; 28×160 mm – 1 1⁄8 x 6 1⁄4 inch ; 32×152 mm – 1 1⁄4 x 6 inch ; 32×160 mm – 1 1⁄4 x 6 1⁄4 inch |
