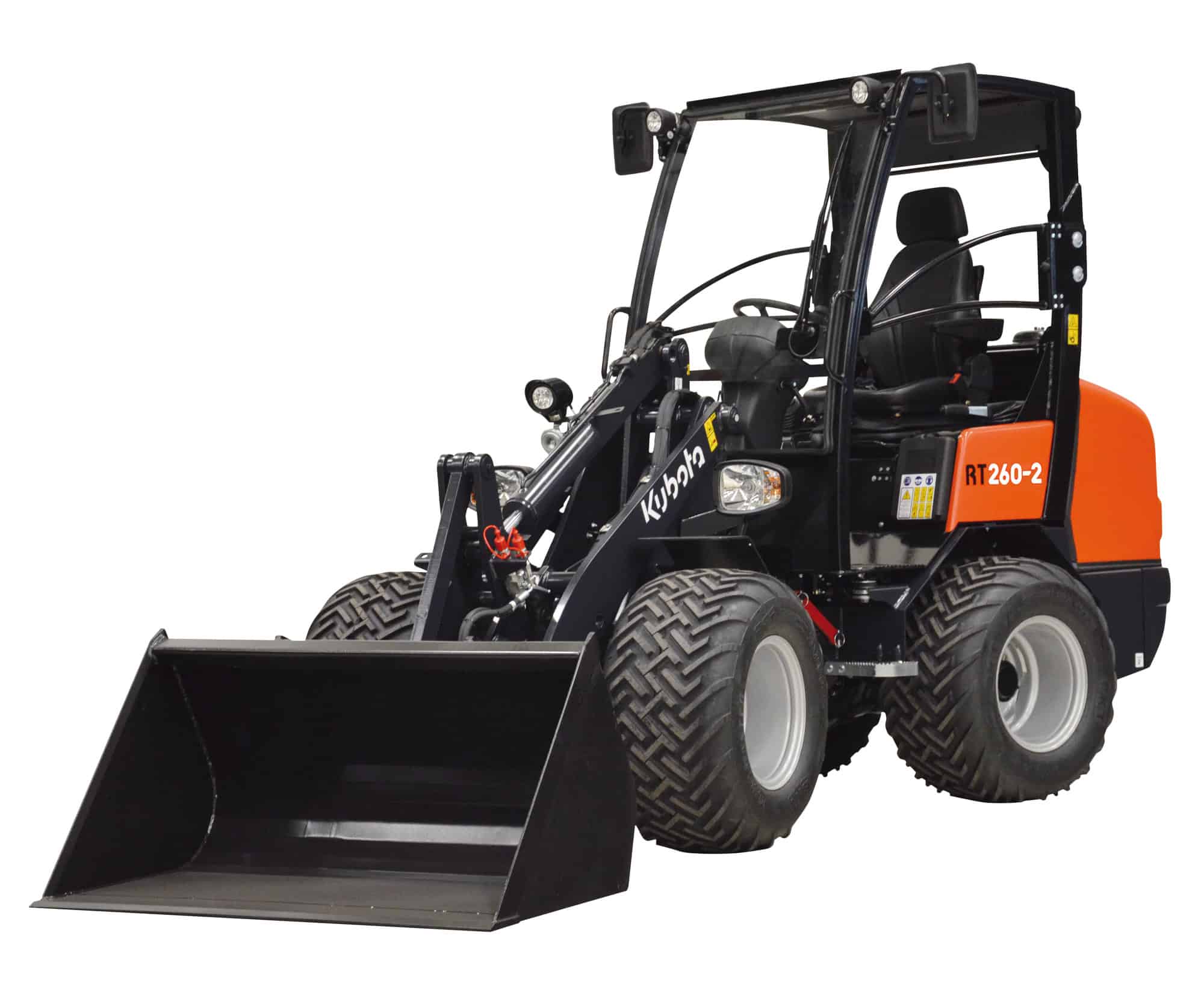

Each job requires a specialized tool. The RT-2 loaders are perfectly designed for all
kinds of application, such as construction, gardening, public works and agriculture.
With the perfect balance between performance, compactness, safety and comfort
no job is too big for the KUBOTA wheelloaders.
| Wheel base mm | 1695 |
| Overall length without bucket mm | 3316 |
| Overall length with bucket mm | 4085 |
| Seat height mm | 1341 |
| Overall height mm | 2322 |
| Front frame height mm | 1492 |
| Dumping height mm | 1735 |
| Max. height at hinge pin mm | 2498 |
| Max. lifting height at bucket mm | 3070 |
| Roll back angle at ground level deg | 42 |
| Roll back angle at max. height deg | 47 |
| Dumping angle deg | 37 |
| Rear climbing angle deg | 28 |
| Diameter of standard wheel mm | 850 |
| Turning radius with bucket mm | 3045 |
| Turning radius (outer wheel) mm | 2623 |
| Turning radius (inner wheel) mm | 1523 |
| Tread mm | 850 |
| Overall width mm | 1100 |
| Articulation angle deg | 45 |
| Ground clearance mm | 230 |
