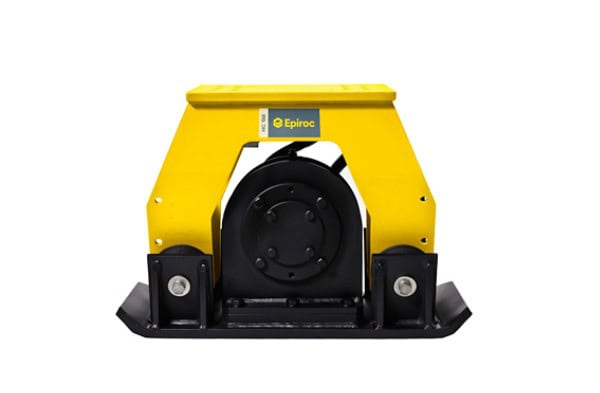

The excavator plate compactors are designed for effectively compacting soil in trenching, ground levelling, embankment construction, driving in posts, sheet piling and other formworks.
The excavator plate compactors are designed for effectively compacting soil in trenching, ground levelling, embankment construction, driving in posts, sheet piling and other formworks.
| Carrier weight class ¹ | 1 t – 3 t |
| Service weight ² | 160 kg |
| Product weight | 140 kg |
| Height | 486 mm |
| Width | 295 mm |
| Length | 721 mm |
| Vibrating force | 1,4 t |
| Revolutions per minute | 2 100 n/min |
| Plate coverage | 0,17 m² |
| Oil flow | 30 l/min |
| Max. operating pressure | 150 bar |
| Version | Non rotation |
A: 486mm
B: 295mm
C: 721mm
