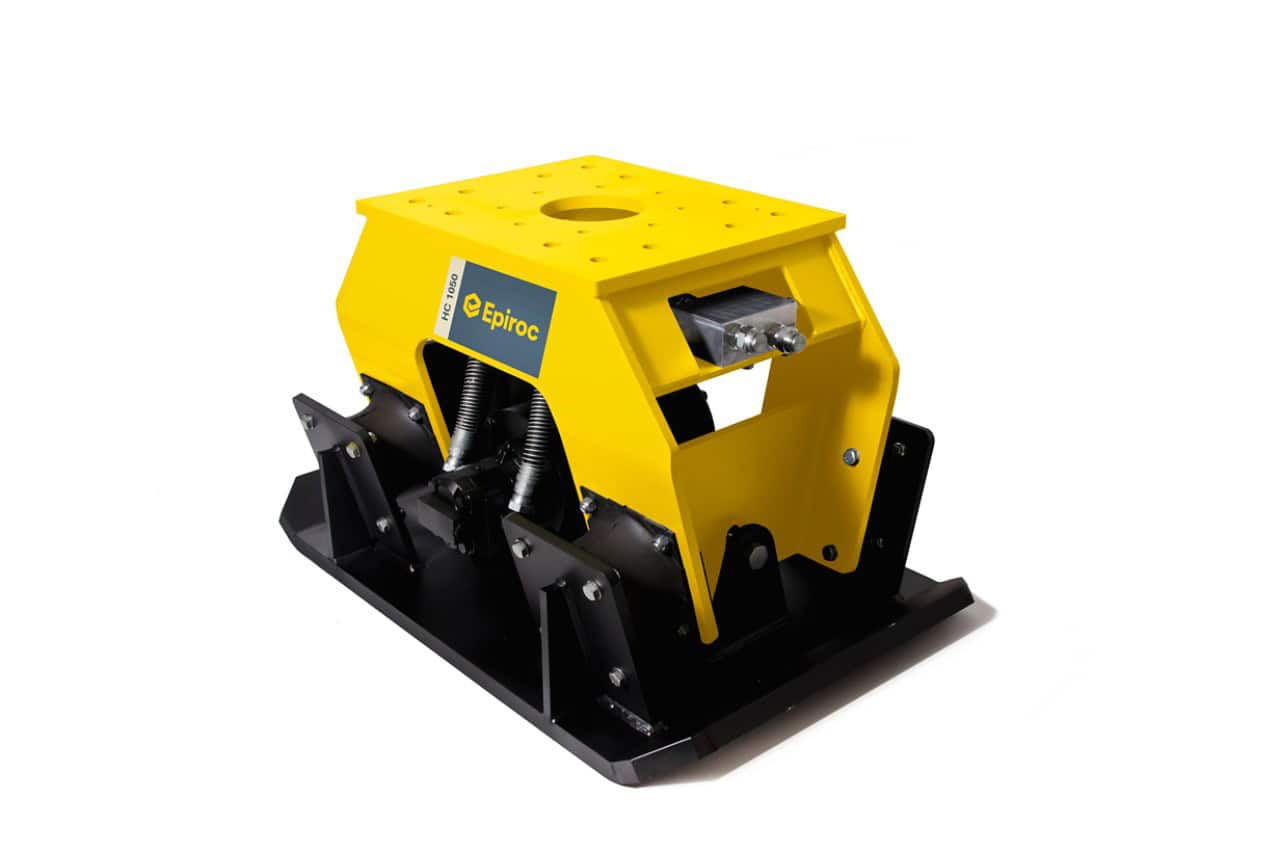

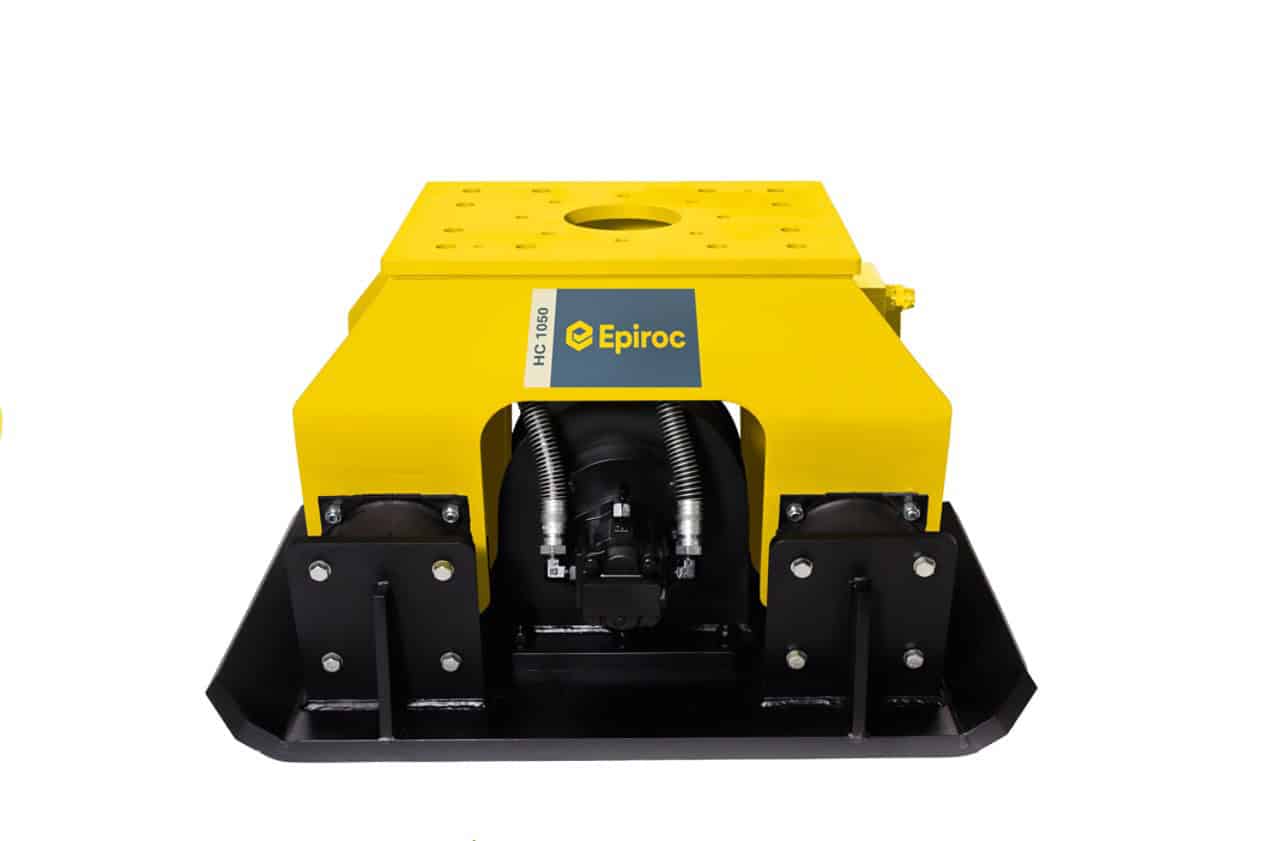

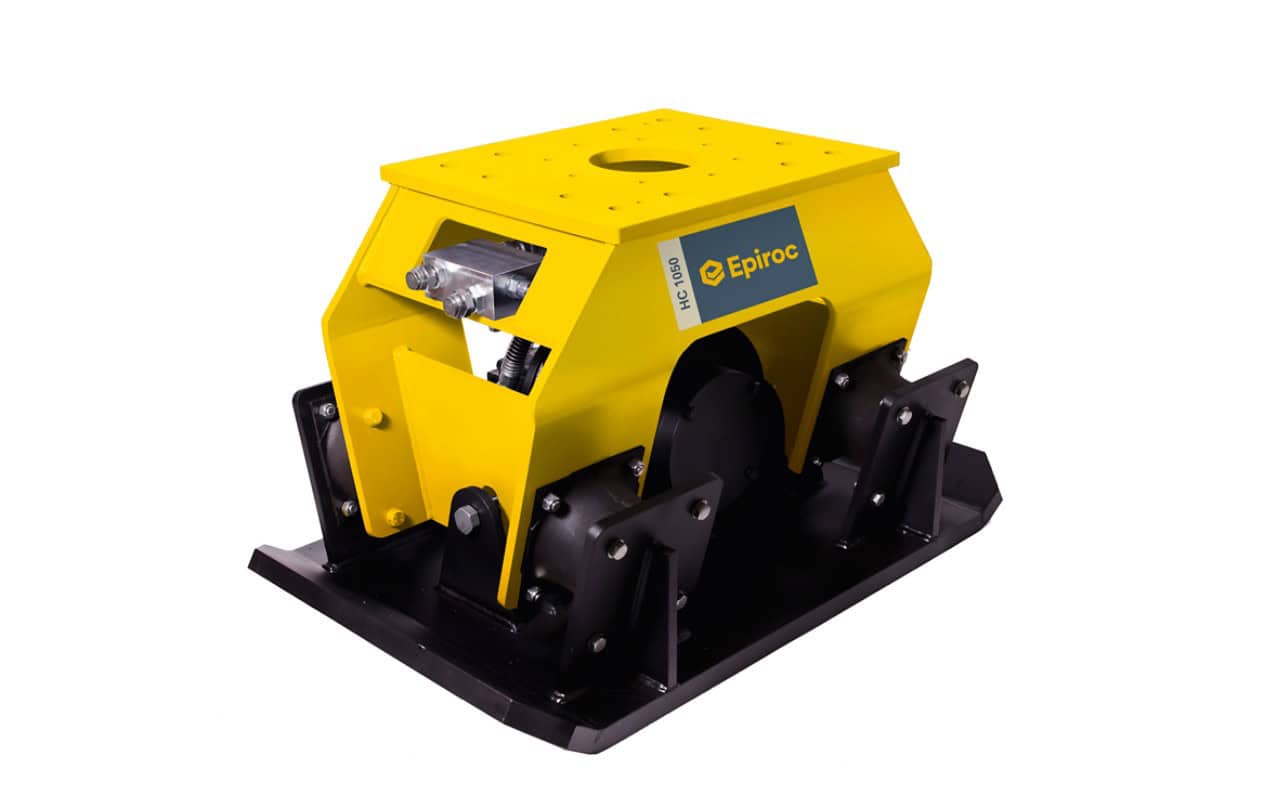

The excavator plate compactors are designed for effectively compacting soil in trenching, ground levelling, embankment construction, driving in posts, sheet piling and other formworks.
The excavator plate compactors are designed for effectively compacting soil in trenching, ground levelling, embankment construction, driving in posts, sheet piling and other formworks.
| Carrier weight class ¹ | 20 t – 40 t |
| Service weight ² | 1 130 kg |
| Product weight | 1 040 kg |
| Height | 786 mm |
| Width | 864 mm |
| Length | 1 364 mm |
| Vibrating force | 10,5 t |
| Revolutions per minute | 2 200 n/min |
| Vibrating frequency | 37 Hz |
| Plate coverage | 0,9 m² |
| Oil flow | 150 l/min |
| Max. operating pressure | 200 bar |
| Version | Non rotation |
A: 786mm
B: 864mm
C: 1,364mm
