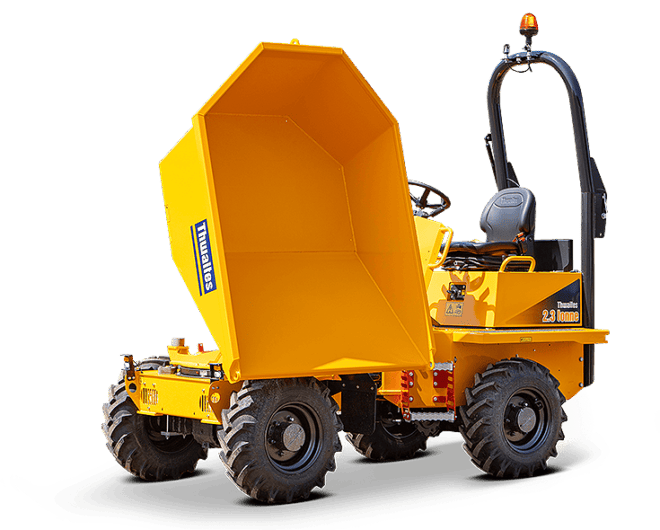

The Thwaites 2.3 Tonne Power Swivel, Stage V dumper is manufactured with contractors and hirers in mind – ensuring operator safety, reducing risk on site and improving performance. Powered by an 18.1 kW 3-cylinder Yanmar engine, delivering 107 Nm max torque for optimum traction and control, this machine is driven by a Hydrostatic transmission, making it simple and straightforward to operate.
The Thwaites 2.3 Tonne Power Swivel, Stage V dumper is manufactured with contractors and hirers in mind – ensuring operator safety, reducing risk on site and improving performance. Powered by an 18.1 kW 3-cylinder Yanmar engine, delivering 107 Nm max torque for optimum traction and control, this machine is driven by a Hydrostatic transmission, making it simple and straightforward to operate.

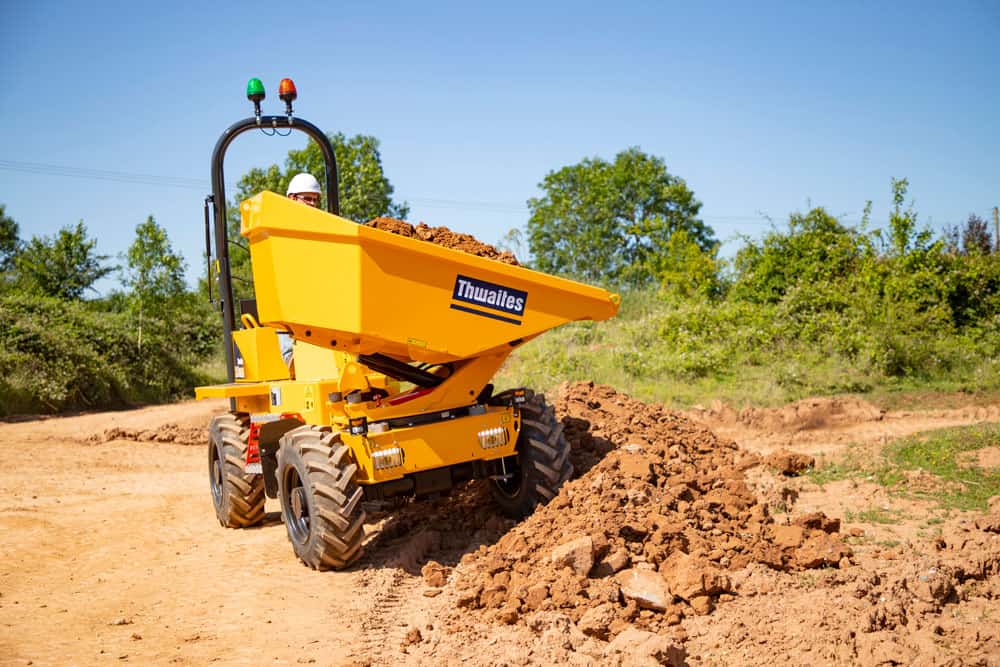

This compact plus machine is available exclusively as a Power Swivel machine only, giving optimum performance when space is at a premium. The Power Swivel skip enables a 90° rotation left and right, allowing the machine easier access to tip loads in restricted areas, giving the operator greater control and reducing risk on site. It has a fully welded 6 mm steel plate skip to the mouth and sides, with reinforced box section fitted to minimise skip damage.
Each dumper is supplied as standard with a Spring Activated Hydraulic Release (SAHR) Handbrake, full LED road lights including daylight running lights, ROPS frame, towing bracket, LED beacons and a reverse alarm. Easy to service and maintain with market leading residuals.
Weight:
Unladen 2150 kg
Shipping 2058 kg
Capacities:
Max safe load 2300 kg
Heaped 1205 litres
Struck 875 litres
Water 770 litres
For full dimensions, please view the product brochure in the downloads tab
